Professional Pavement Design Calculator

Advanced AASHTO pavement structural analysis for flexible pavement systems. Calculate structural numbers, optimize layer thicknesses, and ensure design adequacy with precision.

Start Designing → Learn More

Powerful Engineering Tools

📊

AASHTO Compliance

Full implementation of AASHTO pavement design methodology with precise structural number calculations and reliability analysis.

🎯

Real-Time Calculations

Instant computation of LHS/RHS balance, structural numbers, and design adequacy as you adjust parameters.

🏗️

Flexible Layer Design

Support for both asphalt concrete and concrete pavers with customizable layer properties, thicknesses, and coefficients.

⚡

CBR-Based Analysis

Automatic resilient modulus calculation from CBR values with support for multiple subgrade conditions.

📐

Layer Optimization

Interactive thickness adjustment with immediate SN contribution feedback for each pavement layer.

✅

Design Verification

Built-in checks for equation balance and design adequacy to ensure structural integrity.

Road Design Resources

📥 Download Complete Reference Guide (PDF)

All 6 AASHTO design references in one document

📖
Reference

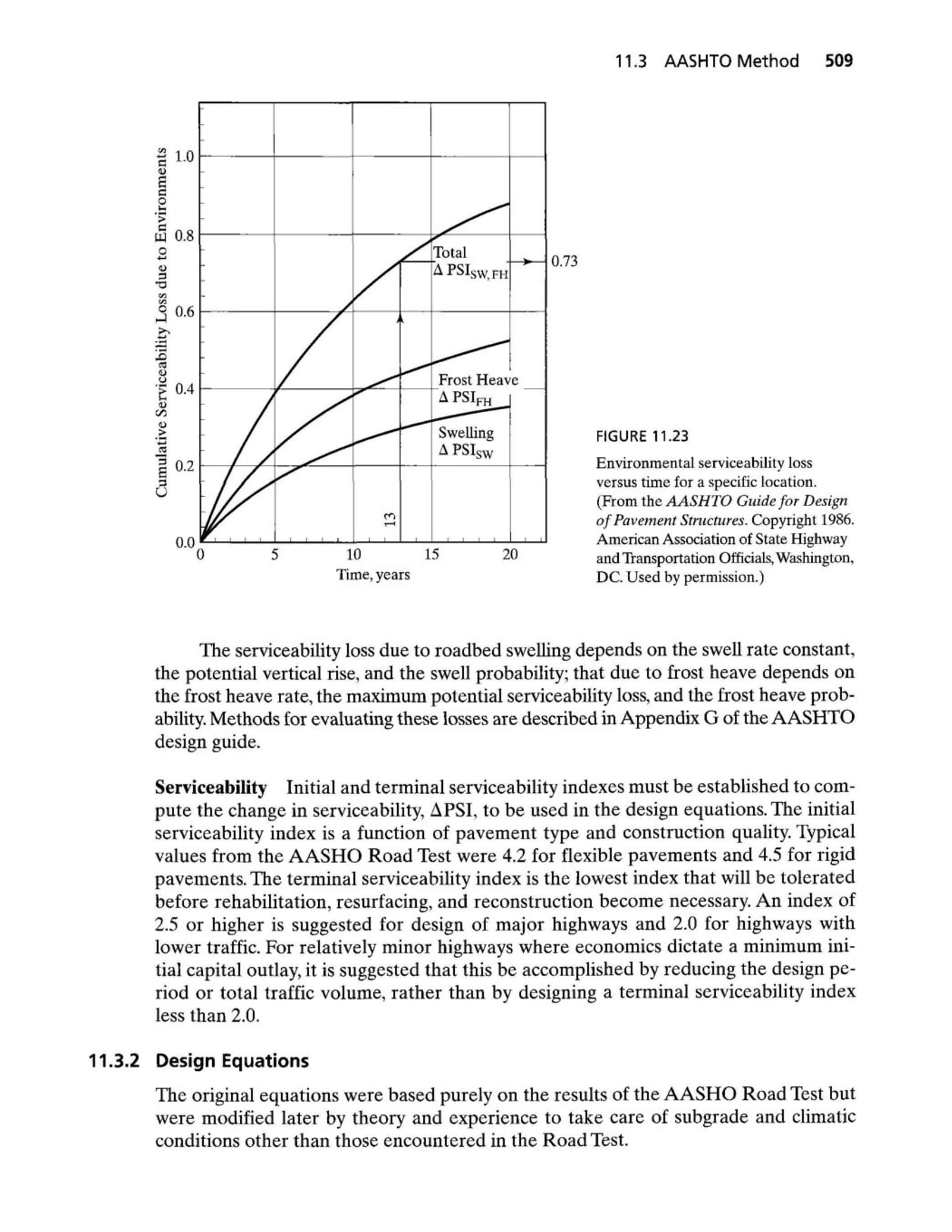

Initial & Terminal Serviceability

Understanding serviceability indexes (Pi and Pt) - the measure of pavement condition from initial construction quality to terminal acceptable condition. Typical values: Pi = 4.2 for flexible pavements, Pt = 2.0-2.5 for major highways.

View Reference →
📊
Reference

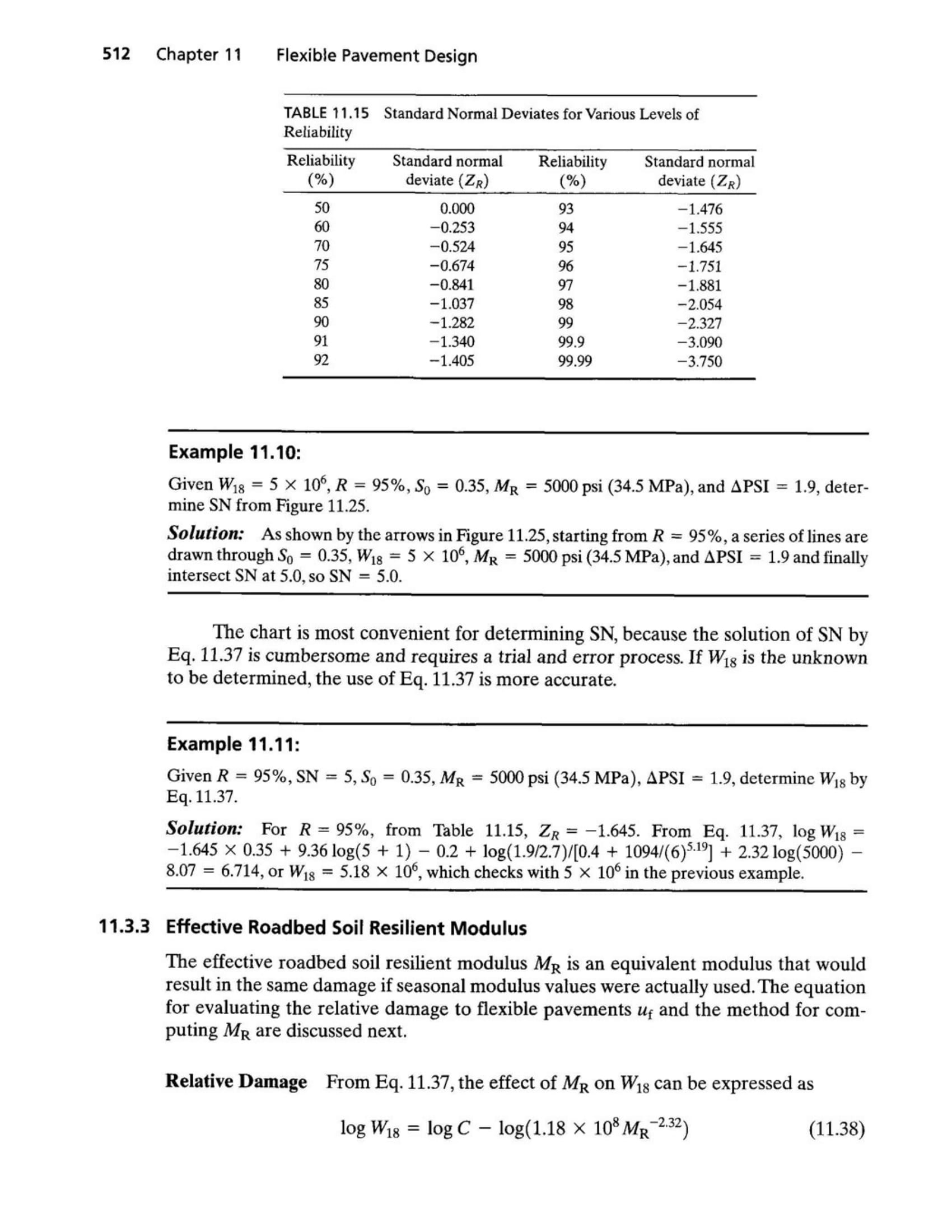

Standard Deviation (So)

Standard deviation values for design reliability analysis. Suggested values: So = 0.49 for flexible pavements, 0.39 for rigid pavements. Essential for accounting for uncertainties in traffic predictions and pavement performance.

View Reference →
🎯
Reference

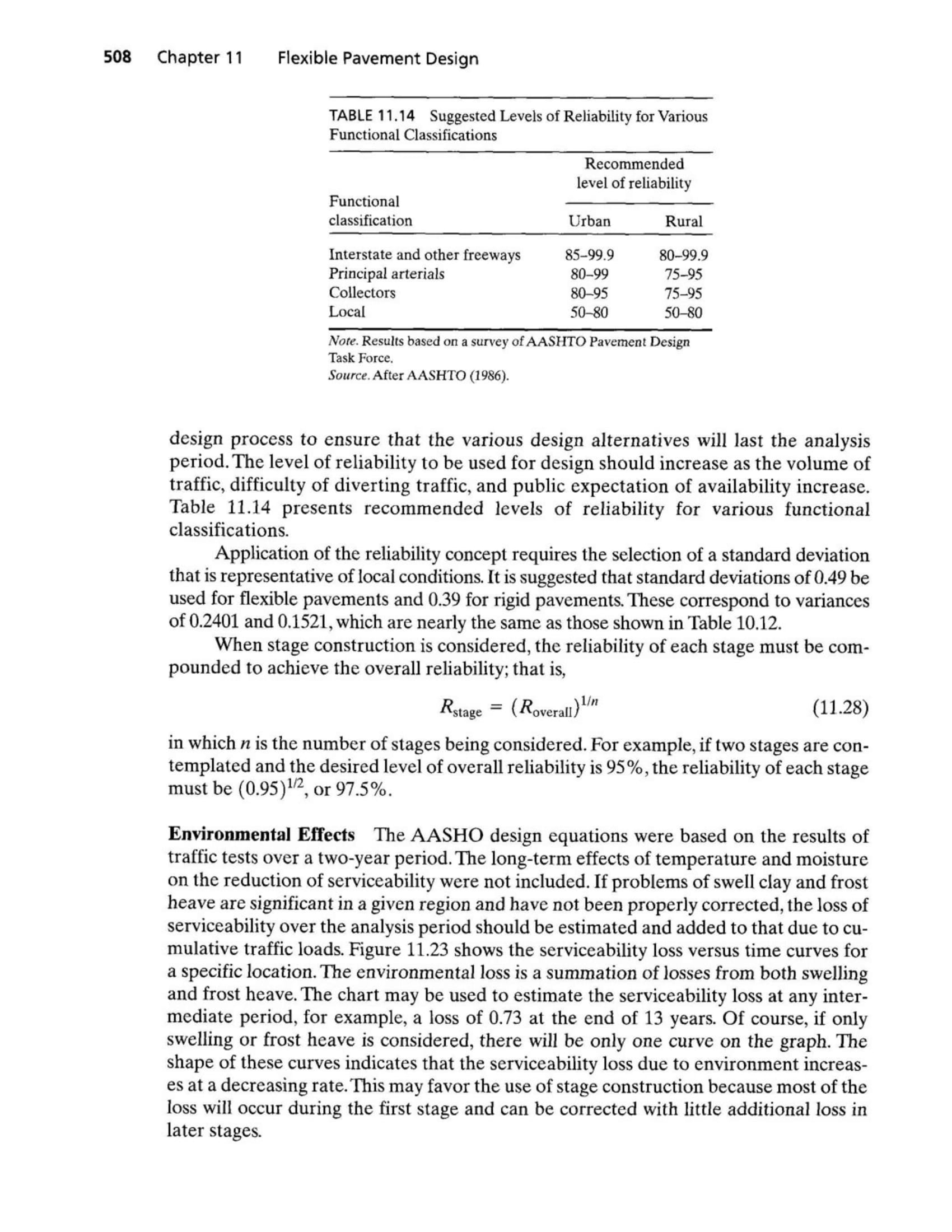

Reliability Levels (R) & Zr

Recommended reliability levels for different functional classifications. Interstate: 85-99.9%, Principal arterials: 80-99%, Collectors: 80-95%, Local: 50-80%. Includes standard normal deviate (Zr) conversion table.

View Reference →
🔬
Reference

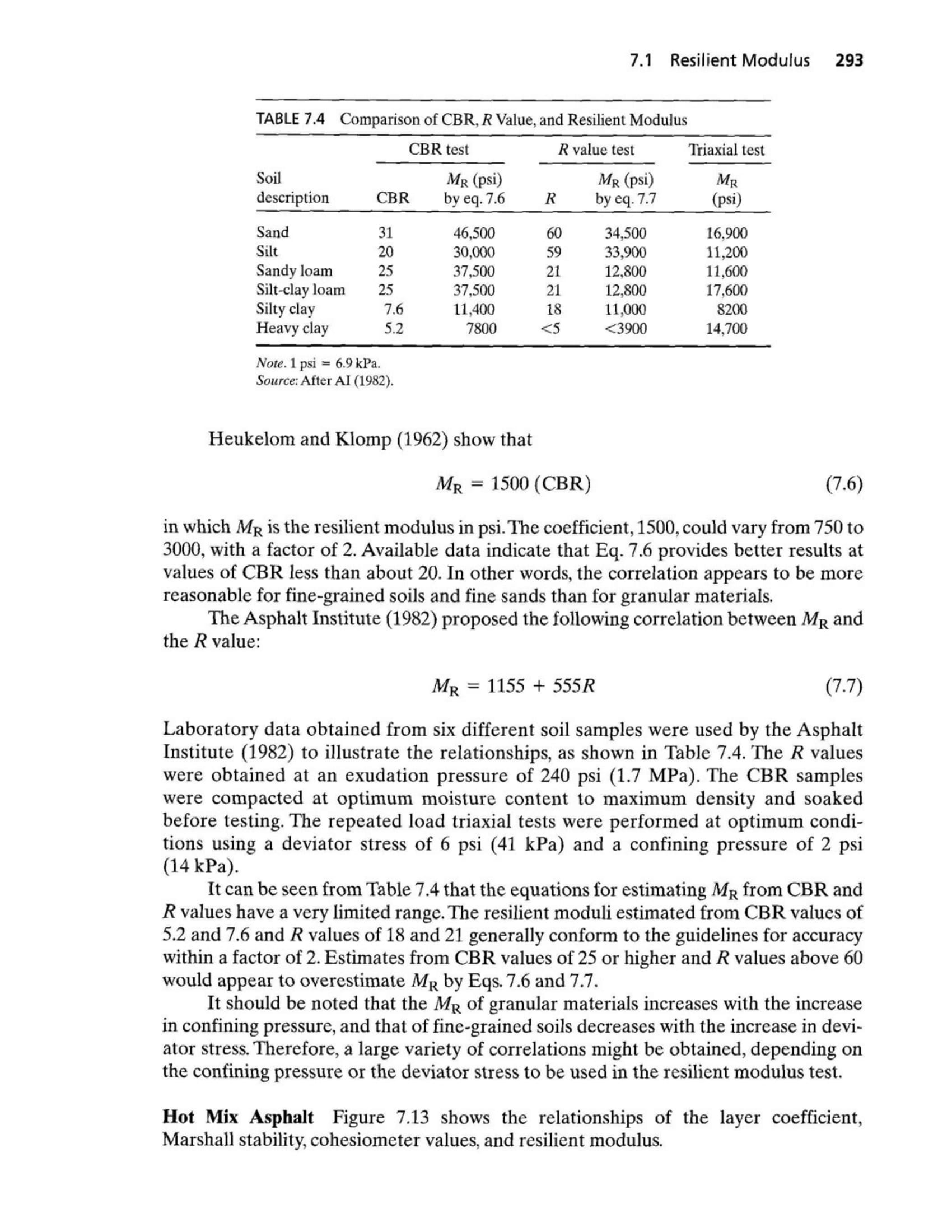

Resilient Modulus (Mr) Calculation

CBR to resilient modulus correlations and empirical relationships. Formula: Mr = 1500 × CBR (for fine-grained soils). Includes comparison tables for different soil types and testing methods.

View Reference →
💧
Reference

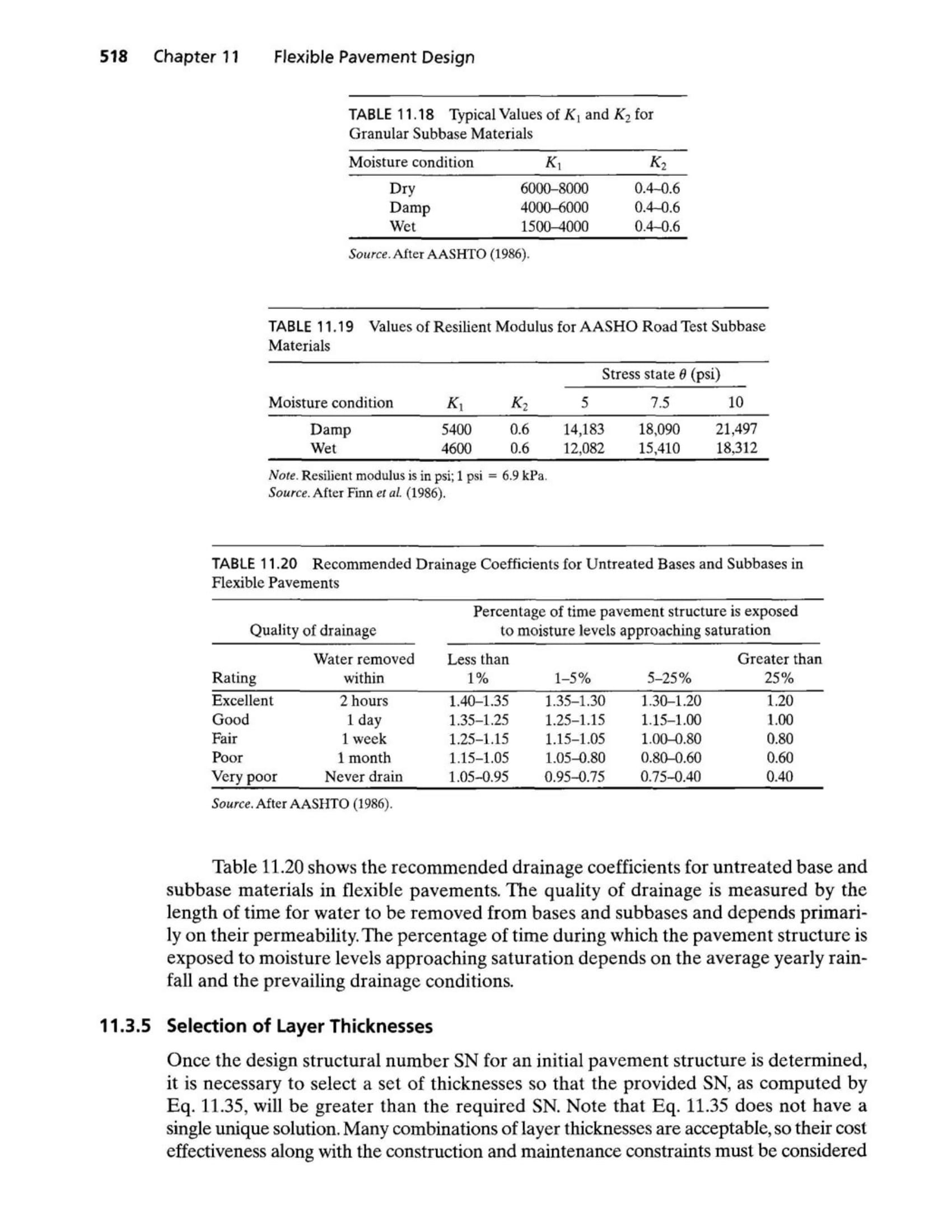

Drainage Coefficients (m)

Recommended drainage coefficients for untreated bases and subbases. Quality ratings from Excellent (m = 1.40-1.35) to Very poor (m = 0.40). Based on water removal time and moisture exposure percentage.

View Reference →
📐
Reference

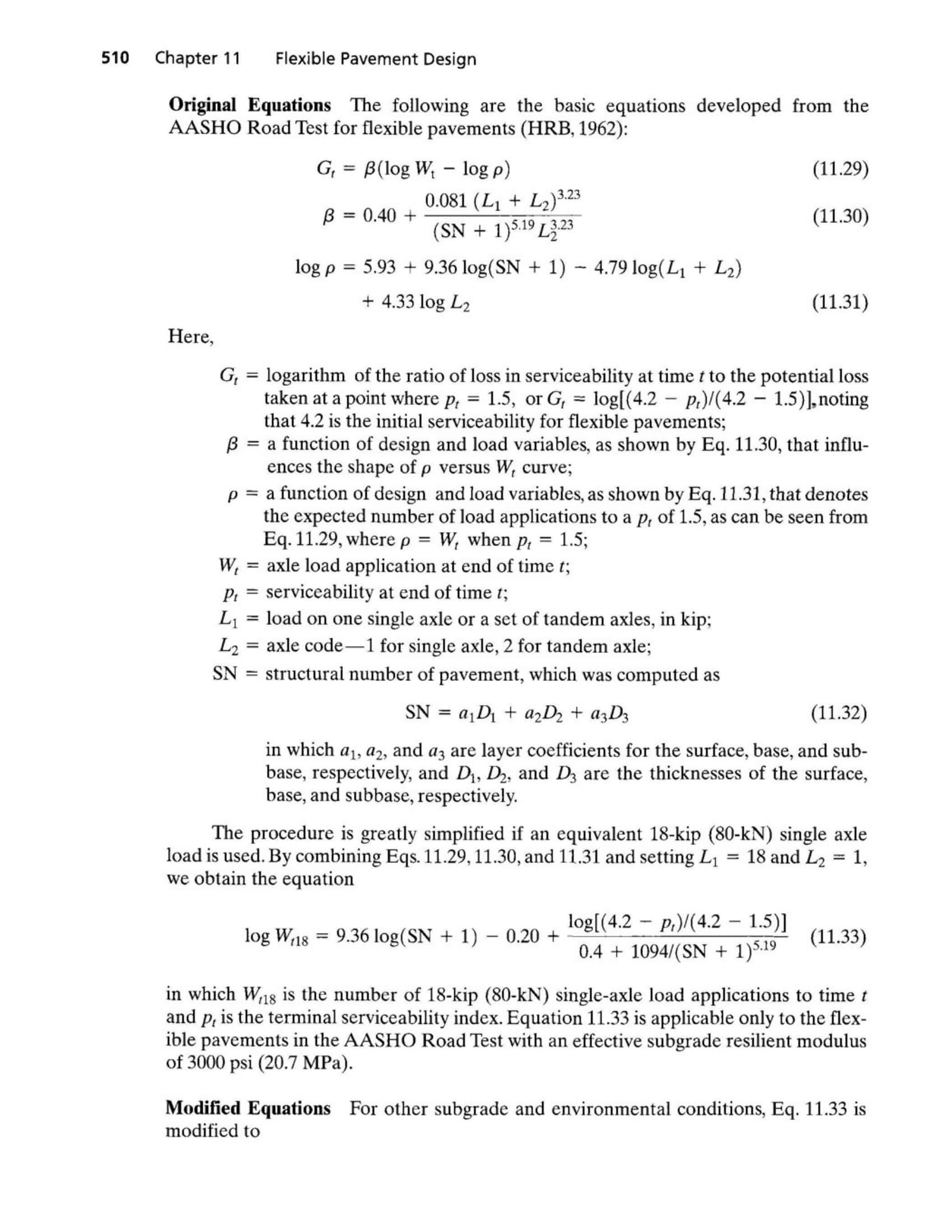

AASHTO Design Equations

Complete AASHTO flexible pavement design equations including structural number (SN) calculation, serviceability concepts, and the relationship between traffic loading, material properties, and layer thicknesses.

View Reference →
📉
Nomograph

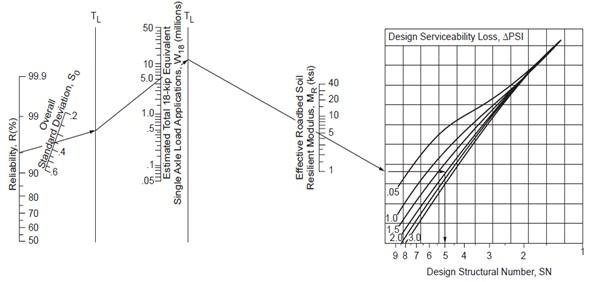

AASHTO Design Nomograph

Official AASHTO flexible pavement design nomograph showing the graphical relationship between reliability, effective roadbed soil resilient modulus, structural number, and design serviceability loss for pavement design.

View Nomograph →

📖 How to Use This Calculator

Follow these simple steps to design your pavement structure

1

Enter Project Information

  • Project Name & Location
  • Design Date
  • Engineer Name
  • Select Pavement Type (Asphalt/Concrete)
2

Input Design Parameters

  • Performance Period: Design life (years)
  • Reliability (R): 85-99.9% (auto-calculates Zr)
  • Standard Deviation (So): 0.35-0.50
  • Serviceability: Initial (Pi) & Terminal (Pt)
  • CBR: Subgrade bearing capacity (auto-calculates Mr)
3

Calculate ESALs

  • Click "🧮 Calculate ESALs" button
  • Enter daily traffic for each vehicle type
  • Set growth rate & design period
  • Calculator auto-splits 20% empty / 80% loaded
  • Click "Use Total ESAL Value"
4

Balance SN Required

  • View the AASHTO equation display
  • Adjust SN slider to balance LHS = RHS
  • Or manually type SN value
  • Watch nomograph update in real-time
  • Find optimal Structural Number
5

Design Pavement Layers

  • Enter layer properties (coefficient a, drainage m)
  • Input thickness in mm (auto-converts to inches)
  • Calculator shows SN contribution per layer
  • Adjust until Total SN ≥ SN Required
  • View typical cross-section diagram
6

Generate Report

  • Scroll to Document Authorization
  • Upload company logo
  • Enter names: Designed By, Reviewed By, Approved By
  • Set date
  • Download as PDF or Excel

💡 Quick Tips

📐 All Formulas Shown: Every auto-calculated field displays its formula in green text next to the label
🔄 Real-Time Updates: Changes to inputs automatically update calculations - no need to click "Calculate" repeatedly
📱 Mobile Friendly: Works perfectly on phones, tablets, and desktops with responsive design
🎨 Interactive Nomograph: Zoom with mouse wheel, pan by dragging, press ESC to reset view
🚀 Start Designing Now

AASHTO Pavement Design Calculator

STRUCTURAL NUMBER ANALYSIS & LAYER DESIGN

Input Parameters

%
From AASHTO reliability table
Formula: ΔPSI = Pi - Pt
%
psi
Formula: Mr = CBR × 1500
Where: Design Traffic = Growth Factor × Current Daily × 365
💡 Enter your parameters above, then adjust SN below to balance the equation

Equation Balance - Find SN Required 📐 Log₁₀(W₁₈) = Zr×So + 9.36×log(SN+1) - 0.20 + [log(ΔPSI/(4.2-1.5))] / [0.4 + 1094/(SN+1)⁵·¹⁹] + 2.32×log(Mr) - 8.07

Uses Zr, So, ΔPSI, Mr, and ESALs from Input Parameters above ⬆️
💡 Move the slider or type a value to find where LHS = RHS
Click "Calculate Design" to see results

AASHTO Design Nomograph

Interactive visualization of design parameters to determine SN Required

Design ESALs: -
Reliability (R): -
So: -
ΔPSI: -
Mr: - psi
SN Required: -

Pavement Layer Design

Asphalt Concrete
psi
Base
% of Subgrade CBR
Subbase
% of Subgrade CBR
Improved Subgrade
Direct CBR value

SN Contribution Summary 📐 SN = a × m × D (inches)

Results will appear here after calculation

📝 Document Authorization (Fill before generating PDF)

Enter names, upload logo, and set date. These details will appear in your PDF report.

🏢

Company Logo

Authorized Signature

Design Engineer

Date: _______________

Reviewed By

Senior Engineer / Technical Lead

Approved By

Project Manager / Director

📄 This document is generated by AASHTO Pavement Design Calculator

Generated on: | Reference: AASHTO 1993 Guide for Design of Pavement Structures

📥 Download Your Design Report

After filling in the document authorization details above, download your professional report

💡 PDF: Print-ready professional report with signatures | Excel: Editable spreadsheet with formulas
